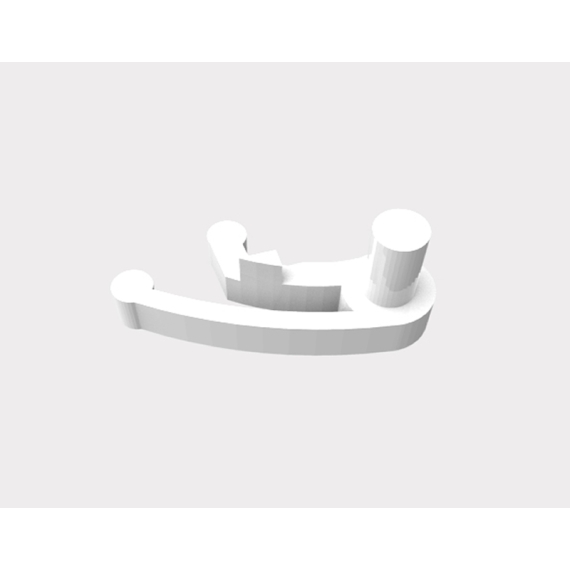

Pfaff Hand Wheel Clutch Lock

This part often snaps or becomes cracked and hence has no spring to it. When you screw the inner wheel inside the hand wheel it should only turn 1/4 revolution, If it turns more or less and the out-of-gear clutch is not working correctly for the bobbin winder you will probably need this part to fix the issue.

The Pfaff Hand Wheel Clutch Lock is located inside the hand wheel and locks the floating wheel in place to drive the top shaft on most older Pfaff sewing machines.

This part is now no longer made by the manufacture, however, we have reproduced it to keep these wonderful older Pfaff sewing machines alive.!

Size: approx 32 mm long at the longest point.

One of our images shows the hand wheel with the "white plastic clutch lock" in position. (the complete hand wheel will not be sent)

It was used on many older Pfaff models:
1006, 1007, 1010, 1037, 1047, 1051, 1067, 1069, 1071, 1147, 1151, 1171, 1212, 1371, 1467, 1469, 1471, 1472, 1473, 1475, 6091, 6110, 6112, 6120, 6122, 6150, 6152, 6230, 6232, 6250, 6270, 7510, 7530, 7550, 7570
